Render Convolution FFT — render_convolution

Takes an image and applys a convolution operation to it, using a user-supplied or built-in kernel. This function uses a fast-fourier transform and does the convolution in the frequency domain, so it should be faster for much larger kernels.

render_convolution_fft(
  image,
  kernel = "gaussian",
  kernel_dim = c(11, 11),
  kernel_extent = 3,
  absolute = TRUE,
  pad = 50,
  filename = NULL,
  preview = FALSE
)

Arguments

image: 3-layer RGB/4-layer RGBA array, rayimg class, or filename of an image.
kernel: Default gaussian. By default, an 11x11 Gaussian kernel with a mean of 0 and a standard deviation of 1, running from -kernel_extent to kernel_extent. If numeric, this will be the standard deviation of the normal distribution. If a matrix, it will be used directly as the convolution kernel (but resized always to be an odd number of columns and rows).
kernel_dim: Default c(11, 11). The dimension of the gaussian kernel. Ignored if user specifies their own kernel.
kernel_extent: Default 3. Extent over which to calculate the kernel.
absolute: Default TRUE. Whether to take the absolute value of the convolution.
pad: Default 50. Amount to pad the image to remove edge effects.
filename: Default NULL. The filename of the image to be saved. If this is not given, the image will be plotted instead.
preview: Default FALSE. Whether to plot the convolved image, or just to return the values.

Value

A rayimg RGBA array.

Examples

if(run_documentation()){
#Perform a convolution with the default gaussian kernel
plot_image(dragon)
}

if(run_documentation()){
#Perform a convolution with the default gaussian kernel

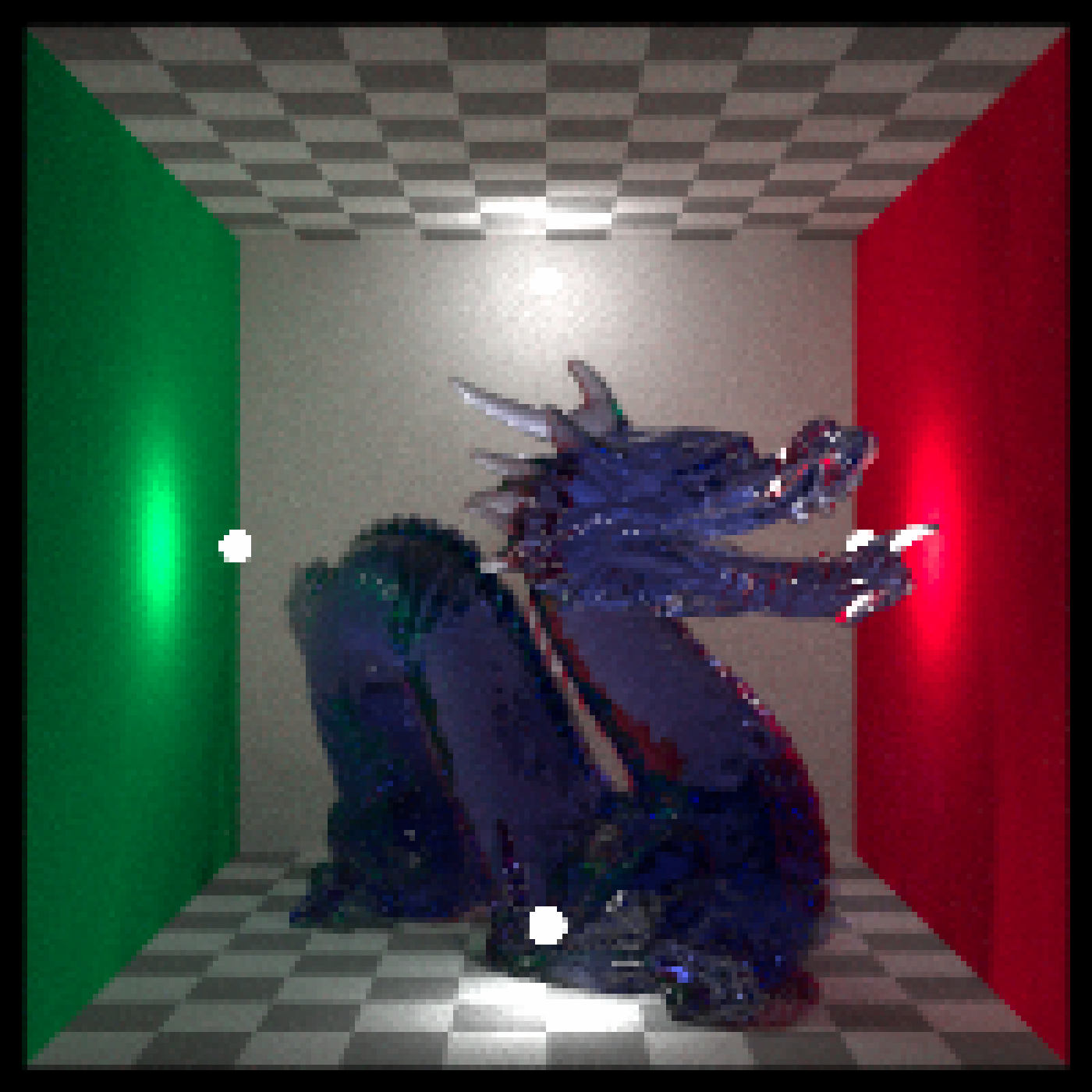

render_convolution_fft(dragon, kernel=0.1, preview = TRUE)
}

if(run_documentation()){
#Increase the width of the kernel
render_convolution_fft(dragon, kernel = 2, kernel_dim=21,kernel_extent=6, preview = TRUE)
}

if(run_documentation()){
#Use a built-in kernel:
render_convolution_fft(dragon, kernel = generate_2d_exponential(falloff=2, dim=31, width=21),
                      preview = TRUE)
}

if(run_documentation()){
#Perform edge detection
edge = matrix(c(-1,-1,-1,-1,8,-1,-1,-1,-1),3,3)
render_convolution_fft(render_bw(dragon), kernel = edge, preview = TRUE)
}

if(run_documentation()){
#Perform edge detection with Sobel matrices
sobel1 = matrix(c(1,2,1,0,0,0,-1,-2,-1),3,3)
sobel2 = matrix(c(1,2,1,0,0,0,-1,-2,-1),3,3,byrow=TRUE)
sob1 = render_convolution_fft(render_bw(dragon), kernel = sobel1)
sob2 = render_convolution_fft(render_bw(dragon), kernel = sobel2)
sob_all = sob1 + sob2
plot_image(sob1)
plot_image(sob2)
plot_image(sob_all)
}



if(run_documentation()){
#We can also apply this function to matrices:

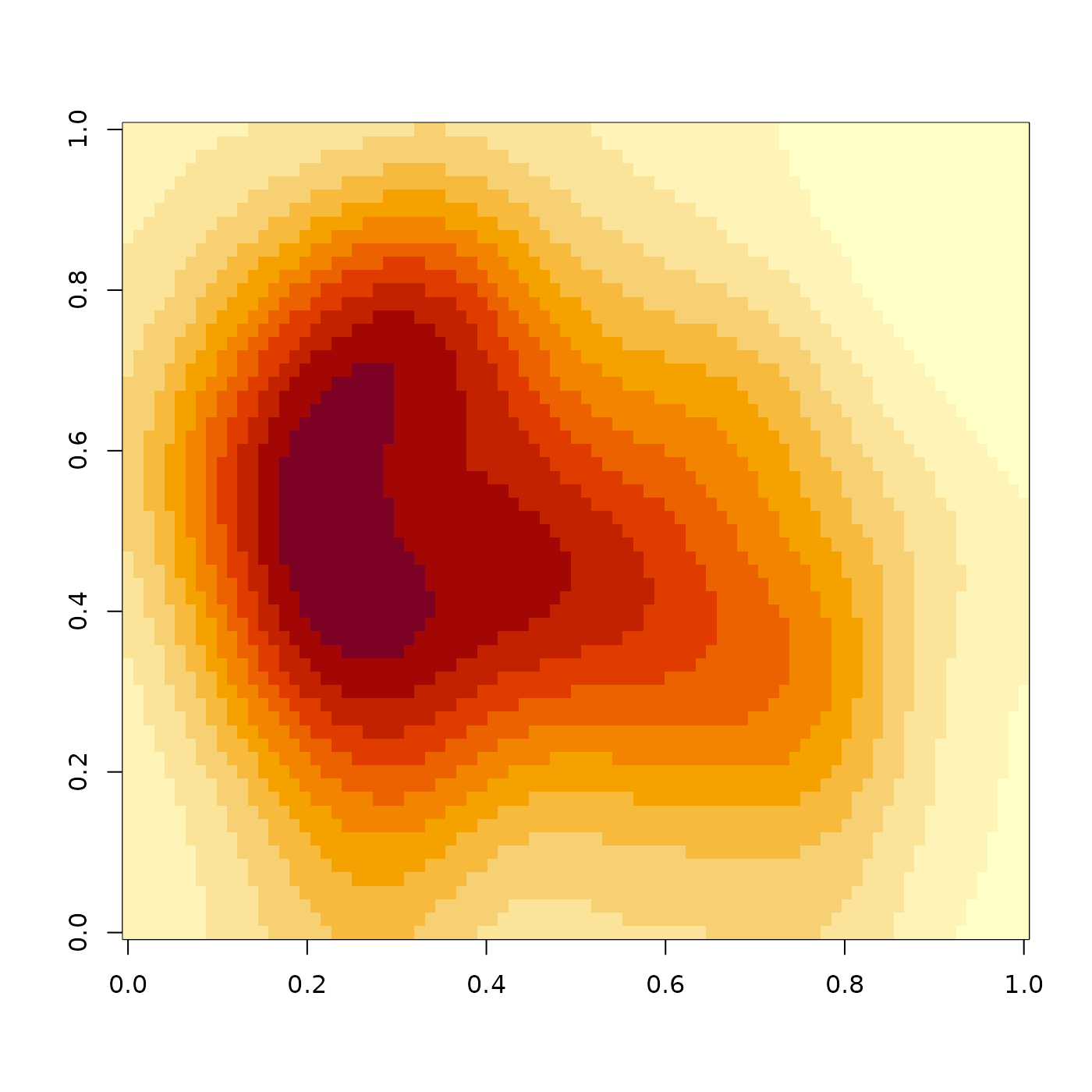

volcano |> image()
volcano |>
 render_convolution_fft(kernel=generate_2d_gaussian(sd=1,dim=31)) |>
 image()
}


if(run_documentation()){
# Because this function uses the fast-fourier transform, large kernels will be much faster
# than the same size kernels in [render_convolution()]
render_convolution_fft(dragon, kernel_dim = c(200,200) , preview = TRUE)
}

if(run_documentation()){
#Use a custom kernel (in this case, an X shape):
custom = diag(10) + (diag(10)[,10:1])
#Normalize
custom = custom / 20
plot_image(custom*20)
render_convolution_fft(dragon, kernel = custom, preview = TRUE)
}
